Northern Line Extension

London Underground (Transportation for London)

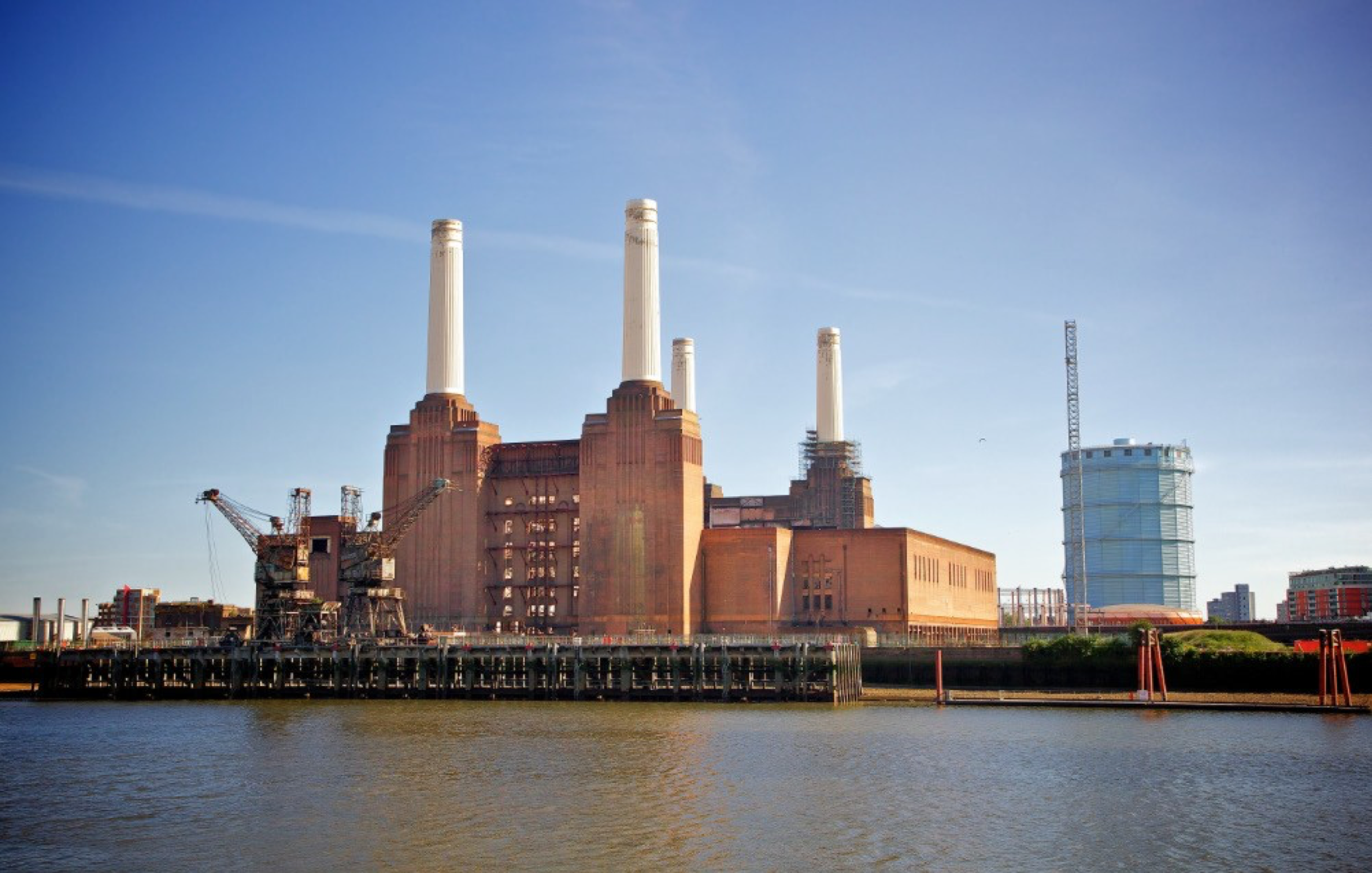

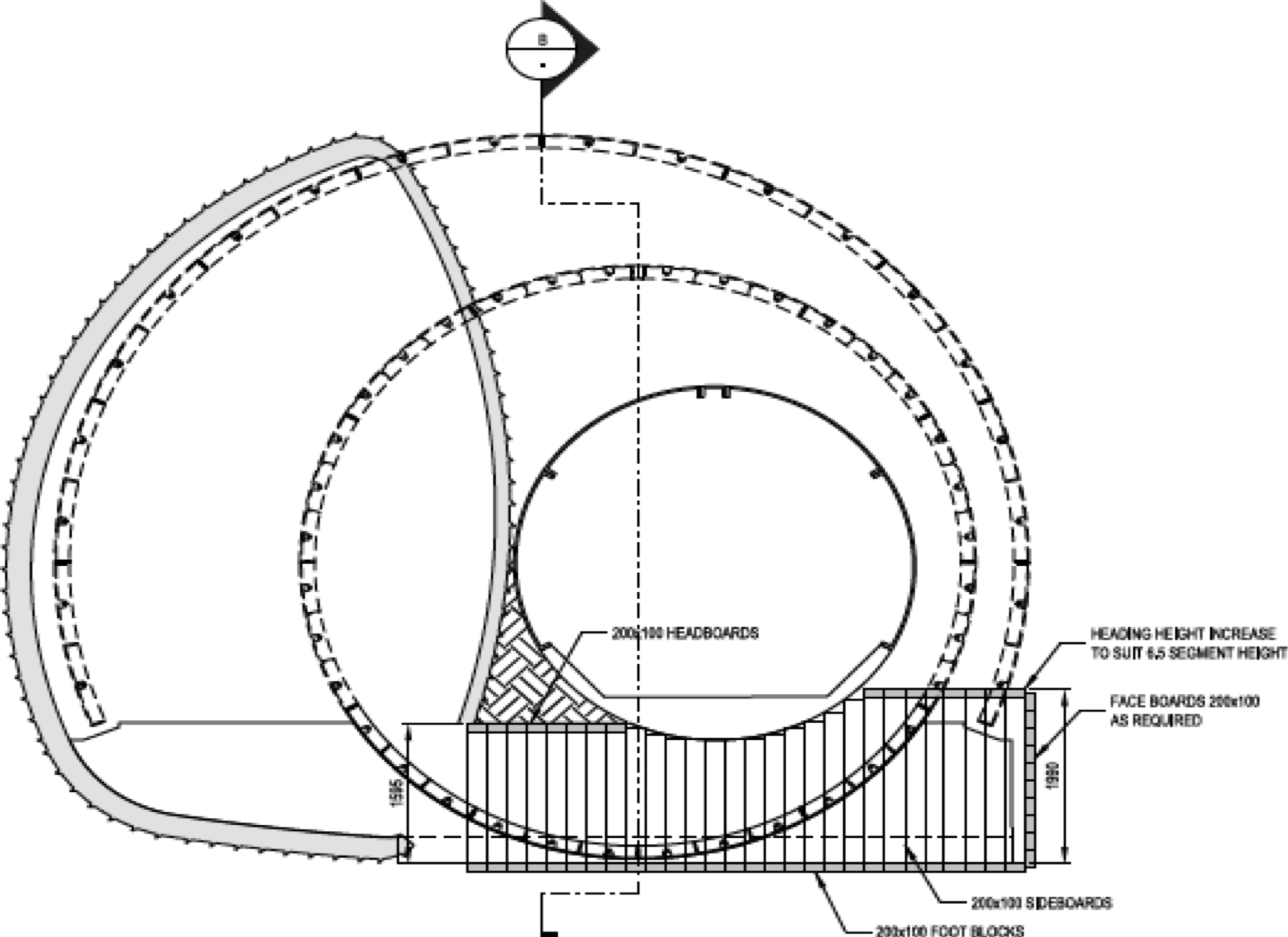

This project entailed the construction of the expansion of the Northern Line with approx. 3 km of planned bored tunnels (5.2m internal diameter), along with the construction of two new London Underground stations – Nine Elms and Battersea. A Step Plate Junction was constructed using SGI / Timber Heading in order to connect to the Northern Line’s existing loop tunnel at Kennington Station to the new extension. Further the existing Kennington Station was enlarged by 4 additional Cross-Passages with SGI lining and hand mining.

TBM Tunneling Expertise Consulting Services:

Gall Zeidler Consultants provided pre-tender design services to a contractor JV and subsequently independent Category III check design services for all SCL structures, the Step Plate Junction and new Kennington Station cross passages.

Location:

London, United Kingdom

Date:

2016 - 2018

Structure:

SCL Shafts, SCL Launch Tunnels, SCL Running Tunnels, SGI / Timber heading for Step Plate Junction and station cross passages

Length:

3km Bored Tunnels, 2 x 77m SCL, Launch Tunnels, 2 x 20m SCL Stub, Tunnels and approx. 300m SCL Running Tunnels

Cross-Section:

SCL up to 40m2, SGI/Timber Headings for step plate junction varying

Geology:

London Clay, Harwich Formation, Lambeth Group

Cost:

£700M

Client:

Laing O’Rourke Ferrovial (FLO) JV

Owner:

London Underground (Transportation for London)
