Design Services for TBM Lining:

The NEWater Infrastructure Plan Extension (NIPE) will extend the PUB services to Jurong Island, and increase the water supply to the country’s large industrial area.

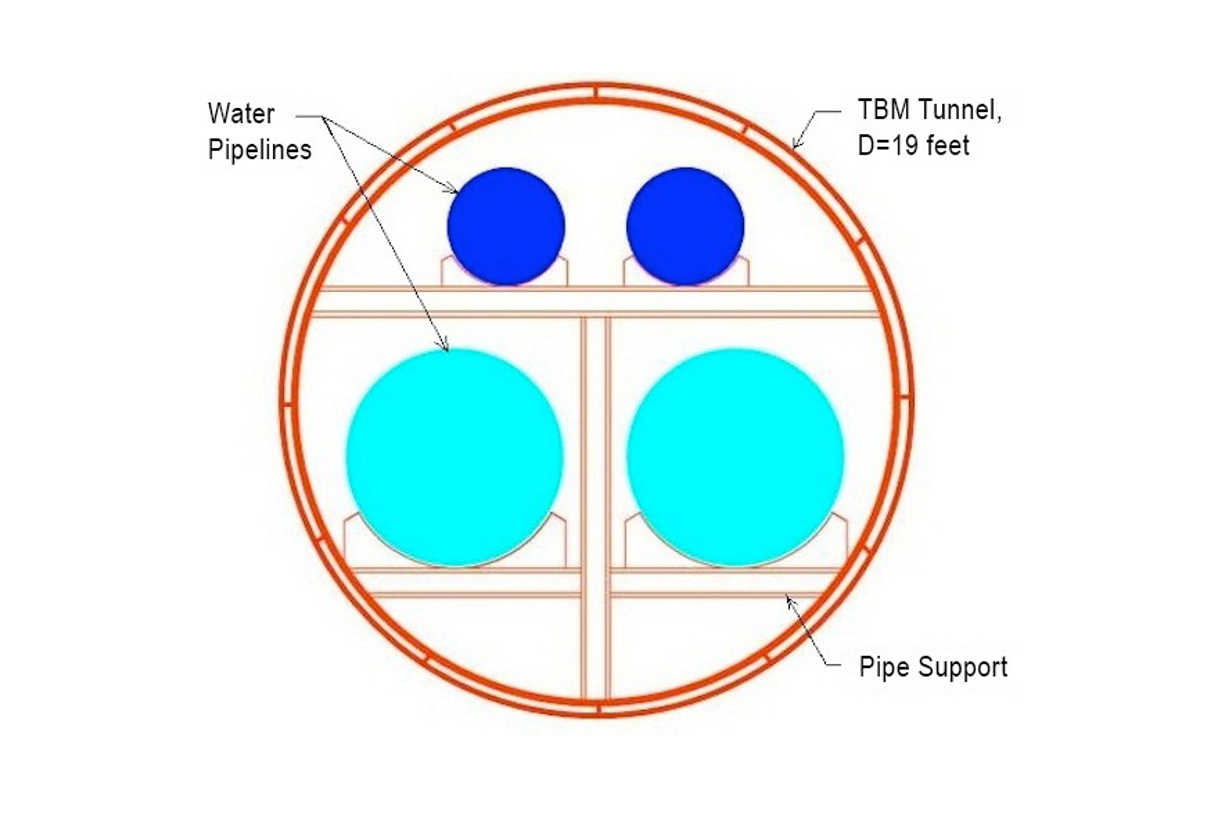

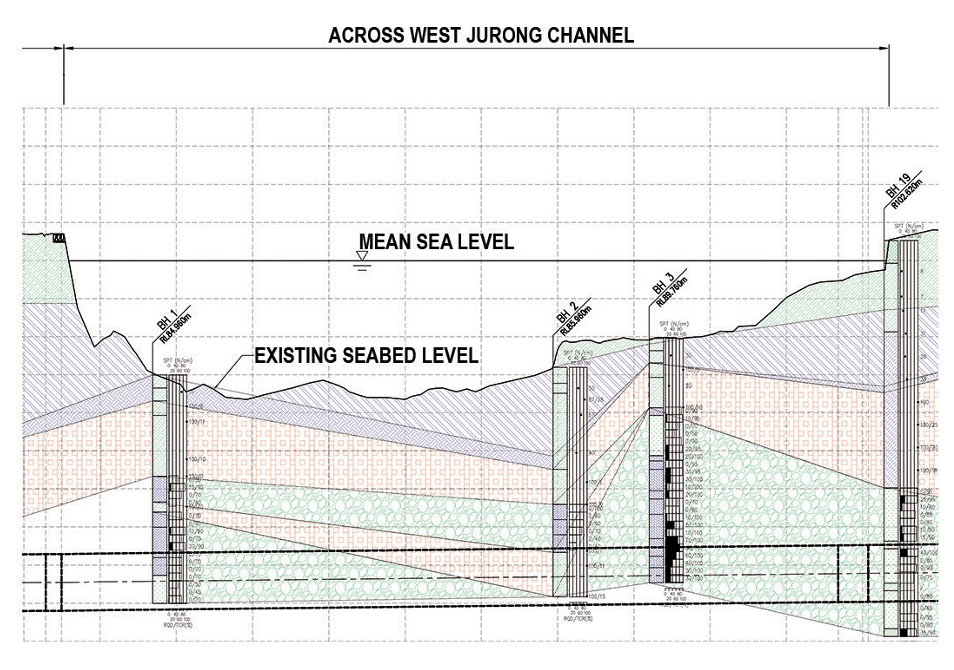

The NIPEC4 design-build contract consists of a 10,800 foot (3,300 meter) long, 19.7 foot (6 meter) diameter Tunnel Boring Machine (TBM) tunnel, which will carry twin 3.9 foot (1.2 meter) diameter potable water pipelines and twin 7.2 foot (2.2 meter) diameter pipelines (Figure 1).  Tunneling will be accomplished by closed face TBM beneath a busy industrial corridor as well as the West Jurong Channel.

Gall Zeidler Consultants (GZ) provided the bidding contractors with the design for the TBM tunnels and shaft connections in addition to the geotechnical monitoring program and advice on the TBM selection.

LOCATION:
Singapore, Singapore
DATE:
2010 – Present
STRUCTURE:
Water Supply Tunnel
LENGTH:
10,800 feet (3,300 meters)
CROSS-SECTION:
304 square feet (28 square meters)
GEOLOGY:
Jurong Formation (Residual Soils, Siltstone, Mudstone, and Sandstone)
COST:
--
CLIENT:
CPG Corporation
OWNER:
Public Utilities Board (PUB)
